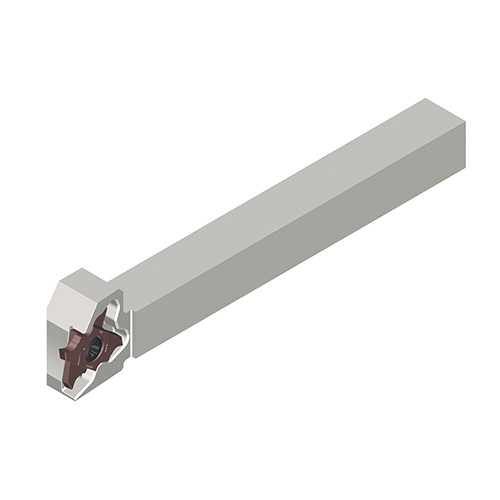

TQHL 12-20

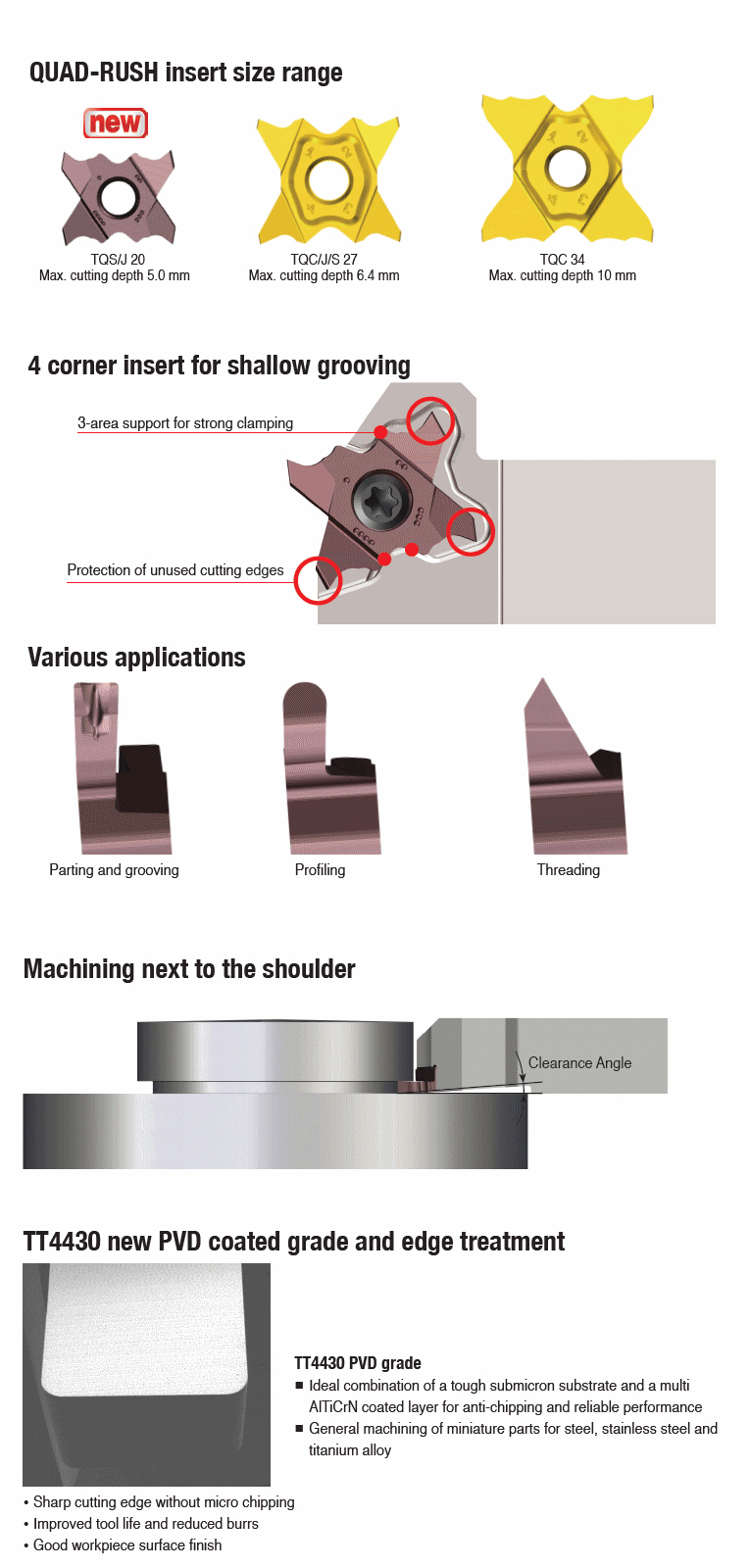

External holders for parting, grooving and next to the shoulder machining with TQS/J 20 small size inserts in swiss turn
Price: Log in For Price

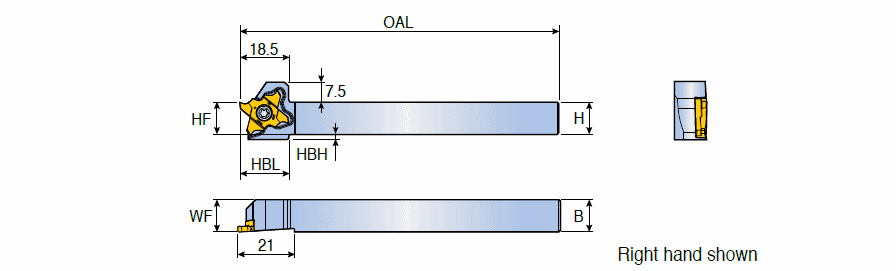

Specifiche del prodotto
| Altezza stelo (H) | 12 mm | Cutting Direction (HAND) | Left Hand |
| Profondità stelo (B) | 12 mm | Tipo di Misurazione | Metric |
| Larghezza minima di taglio (CWN) | 0.5 mm | Insert Seat Size Code (SSC) | 20 |
| Larghezza massima di taglio (CWX) | 3 mm | Master Insert Identification (MIID) | TQS 20-2.00-0.10-L |
| Overall Length (OAL) | 120 mm | Functional Width (WF) | 12 mm |
| Applicazione | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Threading (Groove Turn) | Parting | Tools for Swiss Machines | | Head Bottom Offset Height (HBH) | 2 mm |
| Materiale | Steel | Unità | M |
| Diametro massimo di troncatura (CUTDIA) | 20 |
Caratteristiche del prodotto
| FamilyDesc | External holders for parting, grooving and next to the shoulder machining with TQS/J 20 small size inserts in swiss turn | FamilyName | TQHR/L-20 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Peso Confezione
0.1700
Nome
Parting Off Indexable Holders
FamilyName
TQHR/L-20
BrandName
Taegutec
