2P-TF90-732-16R-05

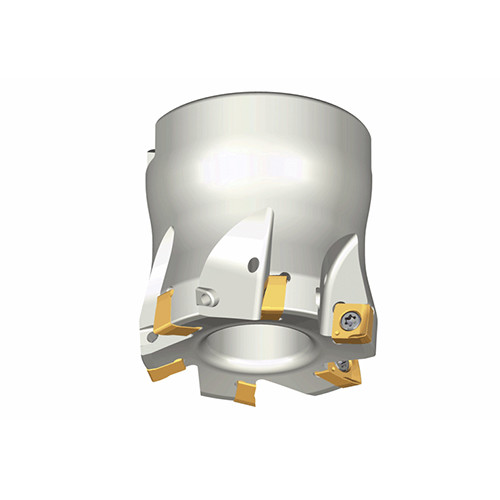

90° Face mills with 2PKT inserts of high positive helical cutting edges
Price: Log in For Price
Specifiche del prodotto

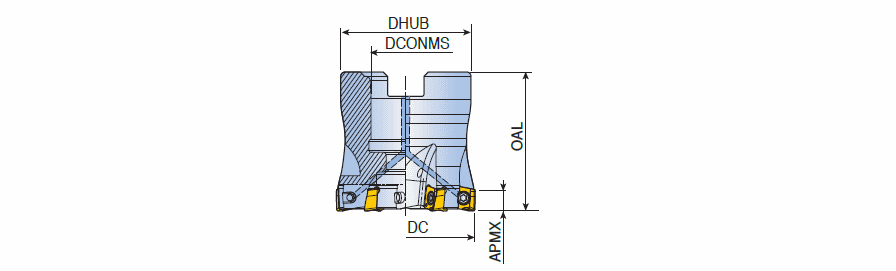

| Diametro della fresa (DC) | 32 mm | Master Insert Identification (MIID) | 2PKT 050304R-M |
| Cutting Item Count (CICT) | 7 | Materiale | Steel |
| Massima profondità di taglio (APMX) | 4.7 mm | Applicazione | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | Step down machining | |
| Diametro connessione macchina (DCONMS) | 16 mm | Tipo di Misurazione | Metric |
| Overall Length (OAL) | 32 mm | Unità | M |
Caratteristiche del prodotto
| FamilyDesc | 90° Face mills with 2PKT inserts of high positive helical cutting edges | FamilyName | 2P-TF90-R-05 |
| Commenti | Mounting bolt with coolant through hole is available on request. (ordering example: SH M8X1.25X25 C ) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Peso Confezione
0.1500
Nome
Indexable Face Mills
FamilyName
2P-TF90-R-05
BrandName
Taegutec
