TEBL 520-M10-04

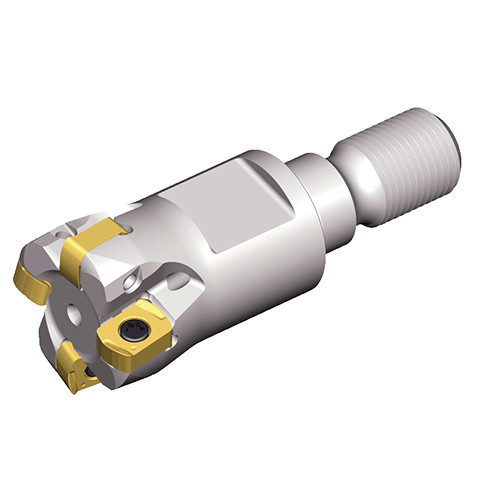

High feed end mills with BLMP 04 inserts of 4 cutting edges and T-FLEXTEC modular adaptations in maximum depth of cut ap 0.5 mm
Price: Log in For Price
Specifiche del prodotto

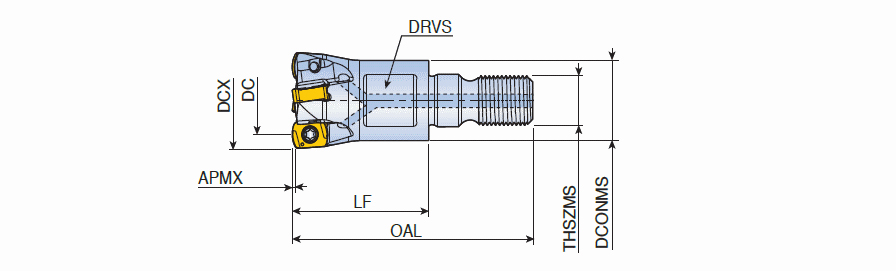

| Cutting Diameter (DC/DCX) | 20 mm | Master Insert Identification (MIID) | BLMP 0402R-M |
| Diametro della fresa (DC) | 15.5 mm | Functional Length (LF) | 23 mm |
| Cutting Item Count (CICT) | 5 | Tipo di Misurazione | Metric |
| Massima profondità di taglio (APMX) | 0.5 mm | Materiale | Steel |
| Overall Length (OAL) | 43 mm | Diametro massimo della fresa (DCX) | 20 mm |
| Applicazione | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Unità | M |
| Diametro connessione macchina (DCONMS) | 18 mm |
Caratteristiche del prodotto
| FamilyDesc | High feed end mills with BLMP 04 inserts of 4 cutting edges and T-FLEXTEC modular adaptations in maximum depth of cut ap 0.5 mm | FamilyName | TEBL-M-04 |
| Commenti | Matched with T FLEXTEC holder | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Peso Confezione
0.1000
Nome
Indexable End Mills
FamilyName
TEBL-M-04
BrandName
Taegutec
