S10K SDUCR 07

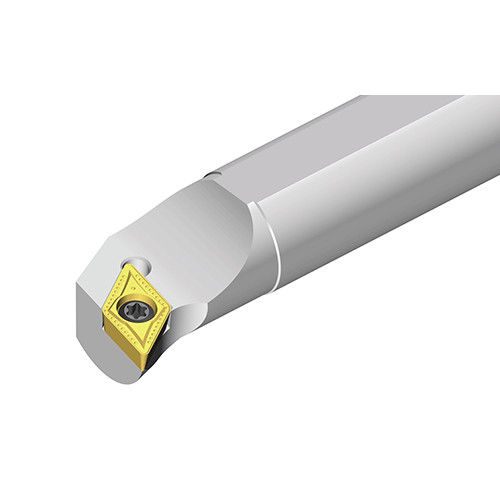

Screw type boring bars for positive 55° Rhombic inserts of 7° clearance angle with 93° approach angle
Price: Log in For Price
Specifiche del prodotto

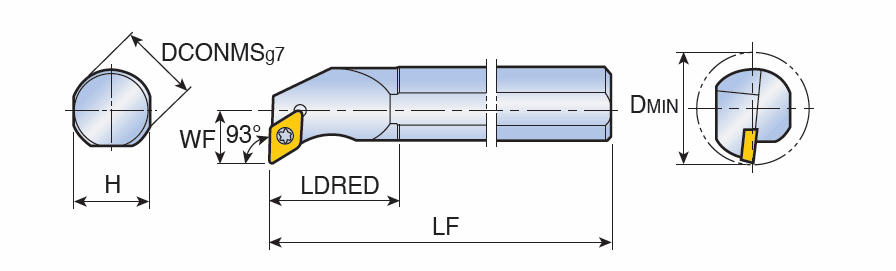

| Diametro connessione macchina (DCONMS) | 10 mm | Applicazione | | Int 100° App 70° Diamond | Int 93° App 55° Diamond | |
| Functional Length (LF) | 125 mm | Materiale | Steel |
| Reduced Body Diameter Length (LDRED) | 20 mm | Tipo di Misurazione | Metric |
| Minimum Bore Diameter (DMIN) | 13 mm | Unità | M |
| Cutting Direction (HAND) | Right Hand |
Caratteristiche del prodotto
| FamilyDesc | Screw type boring bars for positive 55° Rhombic inserts of 7° clearance angle with 93° approach angle | FamilyName | S-SDUCR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Peso Confezione
0.0850
Nome
Indexable Internal Turning Tools
FamilyName
S-SDUCR/L
BrandName
Taegutec
