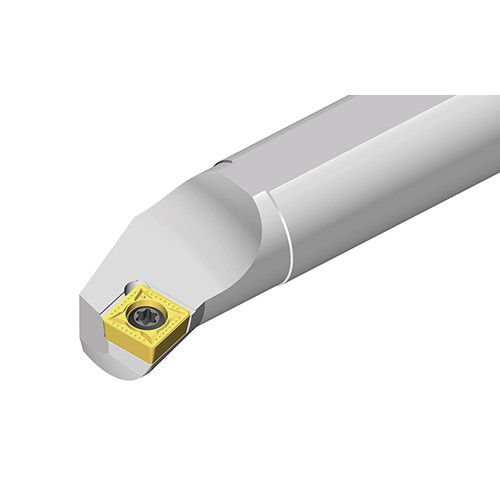

S16R SSKCR 09
Screw type boring bars with 75° approach angle for positive Square inserts of 7° clearance angle
Price: Log in For Price
Specifiche del prodotto

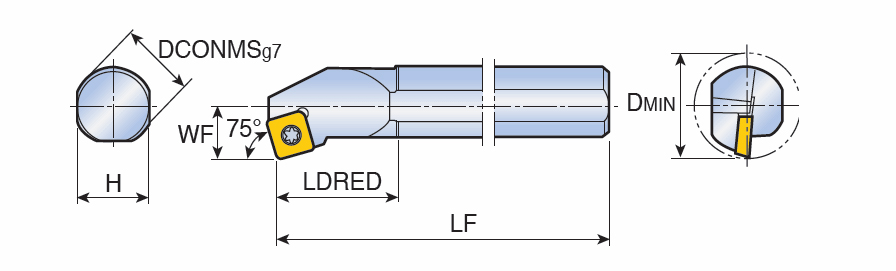

| Diametro connessione macchina (DCONMS) | 16 mm | Applicazione | | Int 75° App 90° Square | |
| Functional Length (LF) | 200 mm | Materiale | Steel |
| Reduced Body Diameter Length (LDRED) | 24.5 mm | Tipo di Misurazione | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm | Unità | M |
| Cutting Direction (HAND) | Right Hand |
Caratteristiche del prodotto
| FamilyDesc | Screw type boring bars with 75° approach angle for positive Square inserts of 7° clearance angle | FamilyName | S-SSKCR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Peso Confezione
0.3350
Nome
Indexable Internal Turning Tools
FamilyName
S-SSKCR/L
BrandName
Taegutec
