S20S SDZCL 07

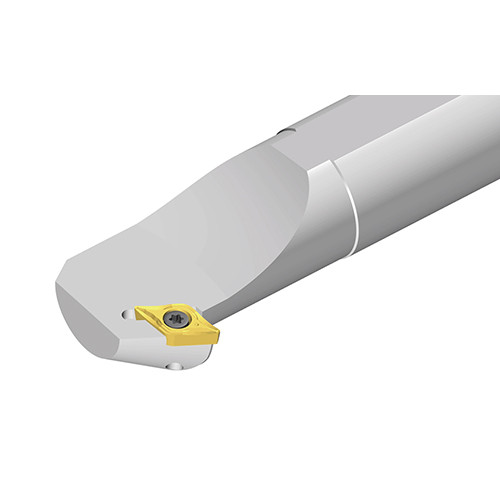

Screw type back boring bars with 93° approach angle for positive 55° Rhombic inserts of 7° clearance angle
Price: Log in For Price
Specifiche del prodotto

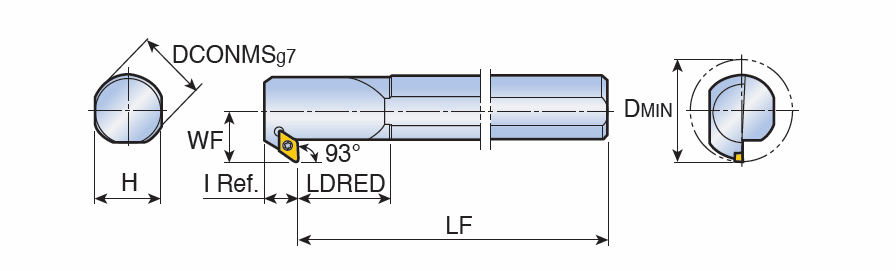

| Diametro connessione macchina (DCONMS) | 20 mm | Applicazione | | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | |
| Functional Length (LF) | 250 mm | Materiale | Steel |
| Reduced Body Diameter Length (LDRED) | 28 mm | Tipo di Misurazione | Metric |
| Minimum Bore Diameter (DMIN) | 30 mm | Unità | M |
| Cutting Direction (HAND) | Left Hand |
Caratteristiche del prodotto
| FamilyDesc | Screw type back boring bars with 93° approach angle for positive 55° Rhombic inserts of 7° clearance angle | FamilyName | S-SDZCR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Peso Confezione
0.6200
Nome
Indexable Internal Turning Tools
FamilyName
S-SDZCR/L
BrandName
Taegutec
