S50U PCLNL 19

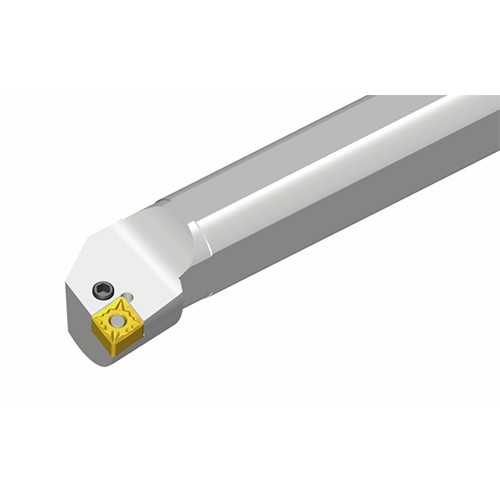

Lever type boring bars with 95° approach angle for negative 80° Rhombic inserts
Price: Log in For Price
Specifiche del prodotto

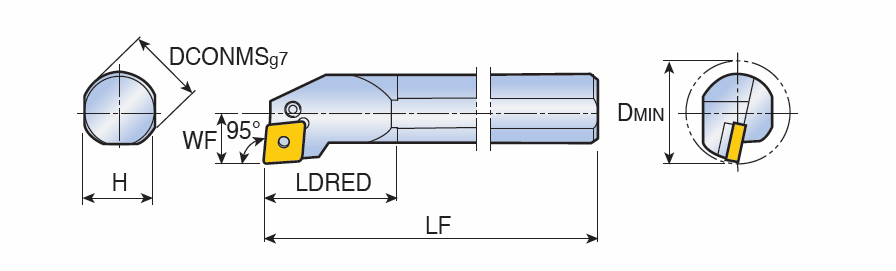

| Diametro connessione macchina (DCONMS) | 50 mm | Applicazione | | Int 95° App 80° Diamond | |
| Functional Length (LF) | 350 mm | Materiale | Steel |
| Reduced Body Diameter Length (LDRED) | 70 mm | Tipo di Misurazione | Metric |
| Minimum Bore Diameter (DMIN) | 63 mm | Unità | M |
| Cutting Direction (HAND) | Left Hand |
Caratteristiche del prodotto
| FamilyDesc | Lever type boring bars with 95° approach angle for negative 80° Rhombic inserts | FamilyName | S-PCLNR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Peso Confezione
5.0900
Nome
Indexable Internal Turning Tools
FamilyName
S-PCLNR/L
BrandName
Taegutec
