RNGN 120700 AB30

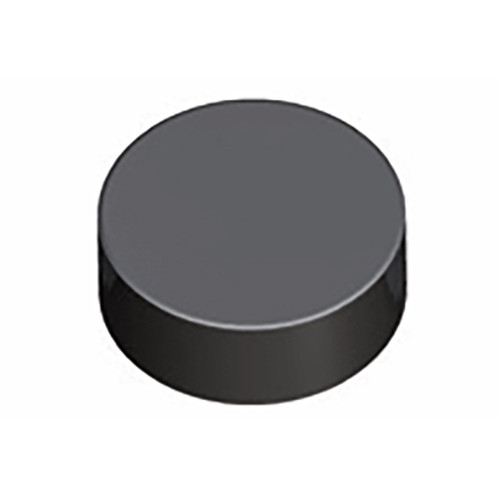

Negative Round ground Ceramic insert without hole for cast iron & hardened steel machining
Price: Log in For Price
Specifiche del prodotto
| Materiali | | Ghise | Acciai Induriti | | Min D.O.C. | 0.1 mm |
| Applicazione | | Ext Neutral Round | Ext Profile Round | Inserts | | Massima profondità di taglio (APMX) | 4 mm |

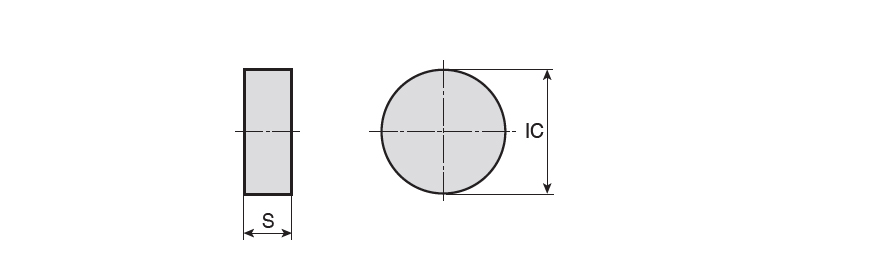

| Spessore inserto (S) | 7.94 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Diametro inscritto (IC) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Materiale Tagliente | Ceramic | Tipo di Misurazione | Metric |
| Ricopertura | TiCN+Al2O3 | Materiale | Carbide |
| Grado | AB30 | Unità | M |
Caratteristiche del prodotto
| FamilyDesc | Negative Round ground Ceramic insert without hole for cast iron & hardened steel machining | FamilyName | RNGN-CERAMIC |
| Commenti | No Notation: 0.2 × 25~ without Honing T6: Land 0.10 × 20~ without Honing S6: Land 0.10 × 20~ with Honing E: Honing 0.02 ~ 0.03 , E04: Honing 0.04 ~ 0.05 without Land U2: Double Land 1.5 × 15~, 0.15 × 30~ without Honing W2: Double Land 1.5 × 15~, 0.15 × 30~ without Honing | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Peso Confezione
0.0056
Nome
Turning Indexable Inserts
FamilyName
RNGN-CERAMIC
BrandName
Taegutec
