TPGT 1103003 R-FF TT9020

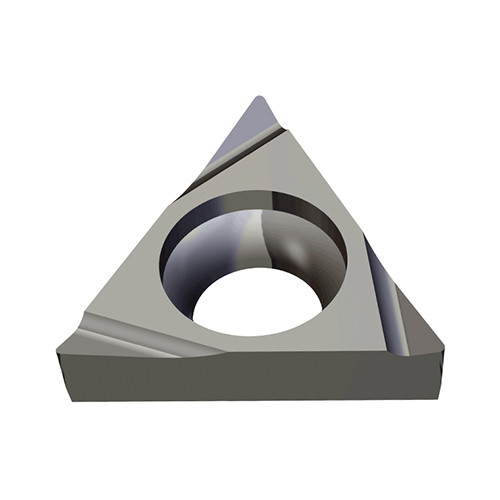

Positive ground 60° Triangular inserts with ground chip former for finish to medium machining of small components
Price: Log in For Price
Specifiche del prodotto

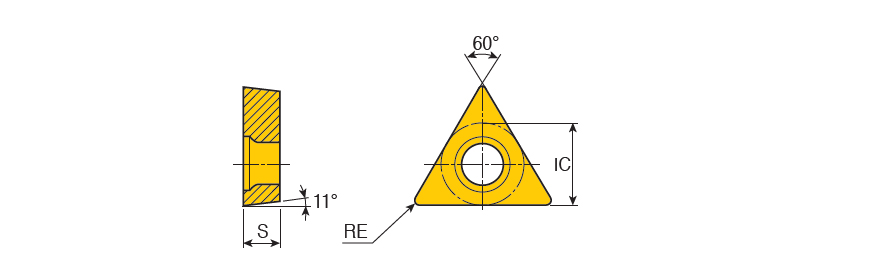

| Materiali | | Acciao | Acciai Inox | | Grado | TT9020 |
| Applicazione | | Ext 91° App 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.05 mm |
| Raggio dellinserto (RE) | 0.03 mm | Massima profondità di taglio (APMX) | 0.4 mm |
| Lunghezza tagliente (L) | 0 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Spessore inserto (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.1 mm/rev |
| Diametro inscritto (IC) | 6.35 mm | Tipo di Misurazione | Metric |
| Materiale Tagliente | Carbide | Materiale | Carbide |
| Ricopertura | TiCN | Unità | M |
Caratteristiche del prodotto
| FamilyDesc | Positive ground 60° Triangular inserts with ground chip former for finish to medium machining of small components | FamilyName | TPGT R/L-FF |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Peso Confezione
0.0027
Nome
Turning Indexable Inserts
FamilyName
TPGT R/L-FF
BrandName
Taegutec
