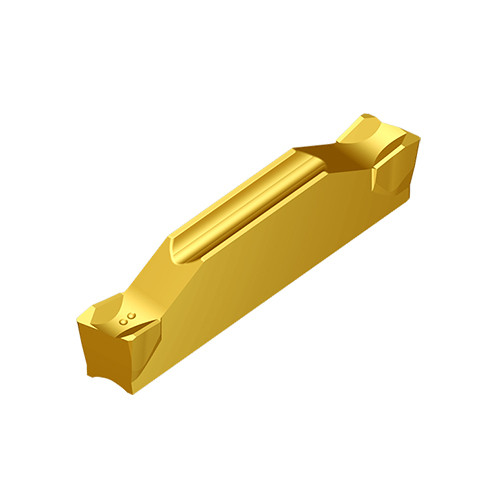

TDC 2-6R TT7220
Double ended inserts with lead angle & C-Type chip breaker for Parting of hard materials & tough applications in medium to high feed of steel, alloy steel and stainless steel
Price: Log in For Price
Specifiche del prodotto

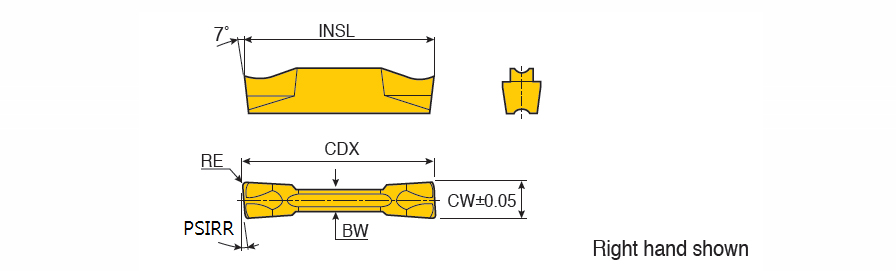

| Larghezza taglio (CW) | 2 mm | Applicazione | | Inserts | Parting | |
| Raggio dellinserto (RE) | 0.2 mm | Materiali | | Acciao | Acciai Inox | |
| Overall Length (OAL) | 20 mm | Altezza | 4.7 mm |
| Massima profondità di taglio (CDX) | 19 mm | Tipo di Misurazione | Metric |
| Materiale Tagliente | Carbide | Materiale | Carbide |
| Ricopertura | TiCN | Unità | M |
| Grado | TT7220 |
Caratteristiche del prodotto
| FamilyDesc | Double ended inserts with lead angle & C-Type chip breaker for Parting of hard materials & tough applications in medium to high feed of steel, alloy steel and stainless steel | FamilyName | TDC-R/L (Double-ended) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Peso Confezione
0.0032
Nome
Parting Off Indexable Inserts
FamilyName
TDC-R/L (Double-ended)
BrandName
Taegutec
