‎MINFR07-210200D080 TT9030

Name: MINFR07-210200D080 TT9030
Brand: TOPMICRO
SKU: TTK6861059
Price: 41.21 EUR
Availability: InStock

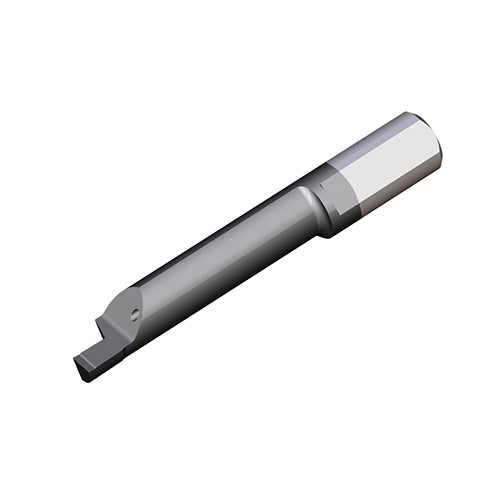

‎MINF: Mini carbide bars for face grooving of Dmin = 6.0 - 8.0 mm

Item # TTK6861059

BrandName: Taegutec

ManufacturerNo: 6861059

Specifiche del prodotto

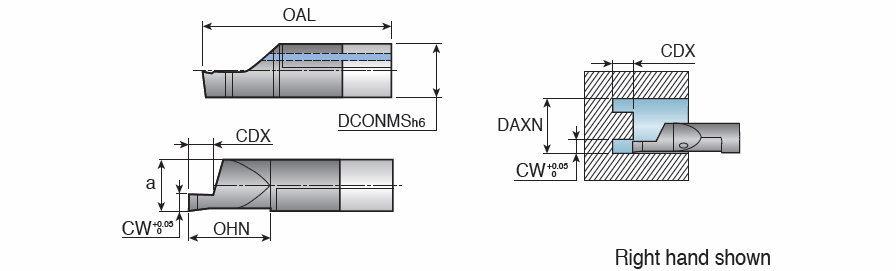

Diametro connessione macchina (DCONMS)	7 mm	Massima profondità di taglio (CDX)	3 mm
Minimum Bore Diameter (DMIN)	8 mm	Materiale	Carbide
Cutting Direction (HAND)	Right Hand	Materiale Tagliente	Carbide
Ricopertura	TiAlN	Tipo di Misurazione	Metric
Grado	TT9030	Overall Length (OAL)	37 mm
Applicazione	\| Face Grooving \| Int. Face Grooving \| Mini carbide bars \| Tools for Swiss Machines \|	Larghezza taglio (CW)	2 mm
Materiali	\| Acciao \| Acciai Inox \| Superleghe \|	Unità	M
Front End Width (a)	2 mm

FamilyDesc	‎MINF: Mini carbide bars for face grooving of Dmin = 6.0 - 8.0 mm	FamilyName	MINF R/L 07-D60/D80
Commenti	The corner radius is less than 0.1mm	BrandName	Taegutec
COO	ISRAEL

Peso Confezione

0.0176

Nome

Solid Boring Bars

FamilyName

MINF R/L 07-D60/D80

BrandName

Taegutec
