NHD 069-043-08 PI5 TT9030
Solid carbide drills with coolant holes and drilling depth 4-5xD for general purpose
Price: Log in For Price
Specifiche del prodotto

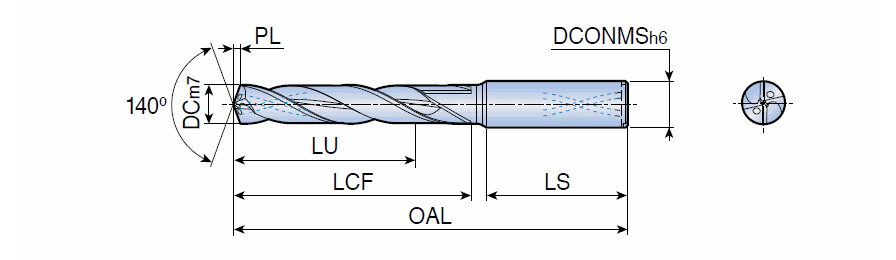

| Drill Bit Size / Cutting Diameter (DC) | 6.9 mm | Materiale Tagliente | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.9 mm | Grado | TT9030 |
| Ricopertura | TiAlN | Tipo di Misurazione | Metric |
| Materiali | | Acciao | Acciai Inox | Superleghe | | Lunghezza utile (LU) | 43 mm |
| Applicazione | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 54 mm |
| Diametro connessione macchina (DCONMS) | 8 mm | Overall Length (OAL) | 91 mm |
| Point Length (PL) | 1.1 mm | Materiale | Carbide |
| Lunghezza stelo (LS) | 36 mm | Unità | M |
Caratteristiche del prodotto
| FamilyDesc | Solid carbide drills with coolant holes and drilling depth 4-5xD for general purpose | COO | S.KOREA |
Shipping Info
Peso Confezione
0.0430
