‎TQHL 25-20-TB-Q

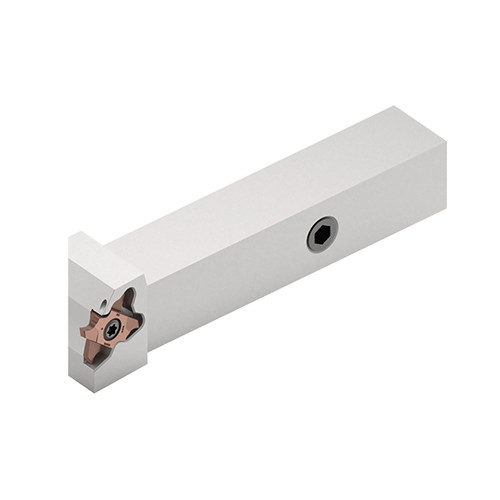

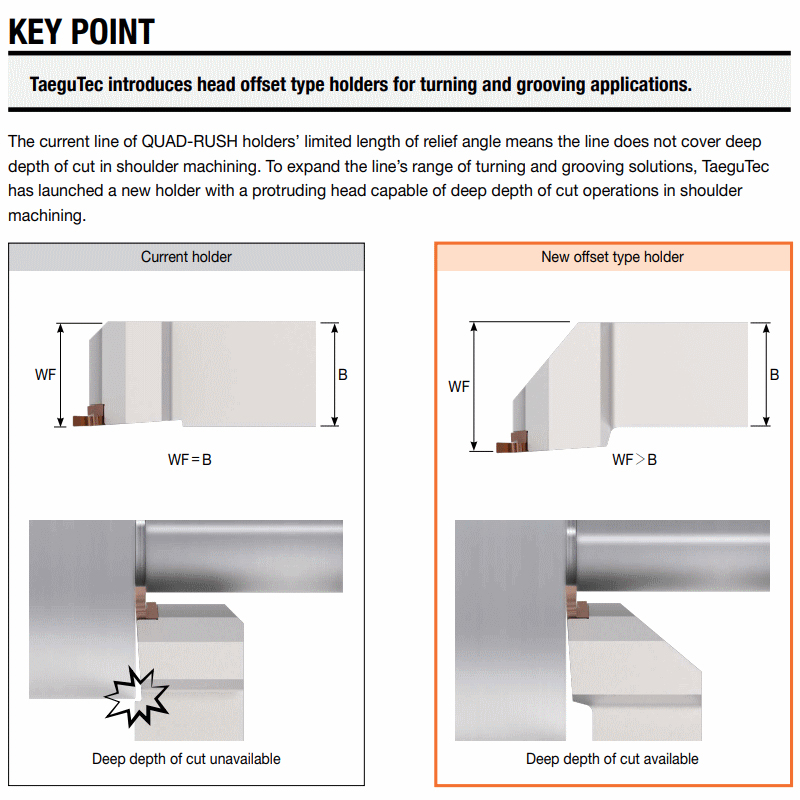

QUAD-RUSH head offset type holders for turning and grooving with high-pressure coolant hole.

Item # TTK6256923

BrandName: Taegutec

ManufacturerNo: 6256923

Specifiche del prodotto

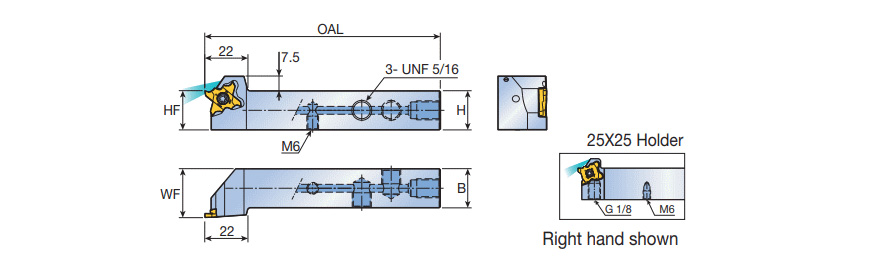

Altezza stelo (H)	25 mm	Tipo di Misurazione	Metric
Profondità stelo (B)	25 mm	Insert Seat Size Code (SSC)	20
Overall Length (OAL)	135 mm	Master Insert Identification (MIID)	‎TQS 20-2.00-0.10-L
Applicazione	\| Ext. Grooving \| Ext. Grooving & Turning \| Ext. Profiling \| Ext. Threading (Groove Turn) \| Parting \|	Functional Width (WF)	30.3 mm
Materiale	Steel	Coolant Entry Thread Size (CNT)	G 1/8
Diametro massimo di troncatura (CUTDIA)	20	Unità	M
Cutting Direction (HAND)	Left Hand

FamilyDesc	QUAD-RUSH head offset type holders for turning and grooving with high-pressure coolant hole.	FamilyName	TQHR/L-20-TB-Q
COO	S.KOREA	BrandName	Taegutec

Peso Confezione

0.0000

Nome

Parting Off Indexable Holders

FamilyName

TQHR/L-20-TB-Q

BrandName

Taegutec
